Main timing chain
Confirm chain specification and application by engine and reference evidence. Do not merge applications by displacement alone.
Corolla engine timing · B2B sourcing
Toyota Corolla Timing Chain Kit
Request Corolla timing chains, tensioners, guides, sprockets and related sealing parts as a defined wholesale kit or as separate component lines.
Engine-code confirmationKit-content controlOE/reference reviewBulk packing discussion

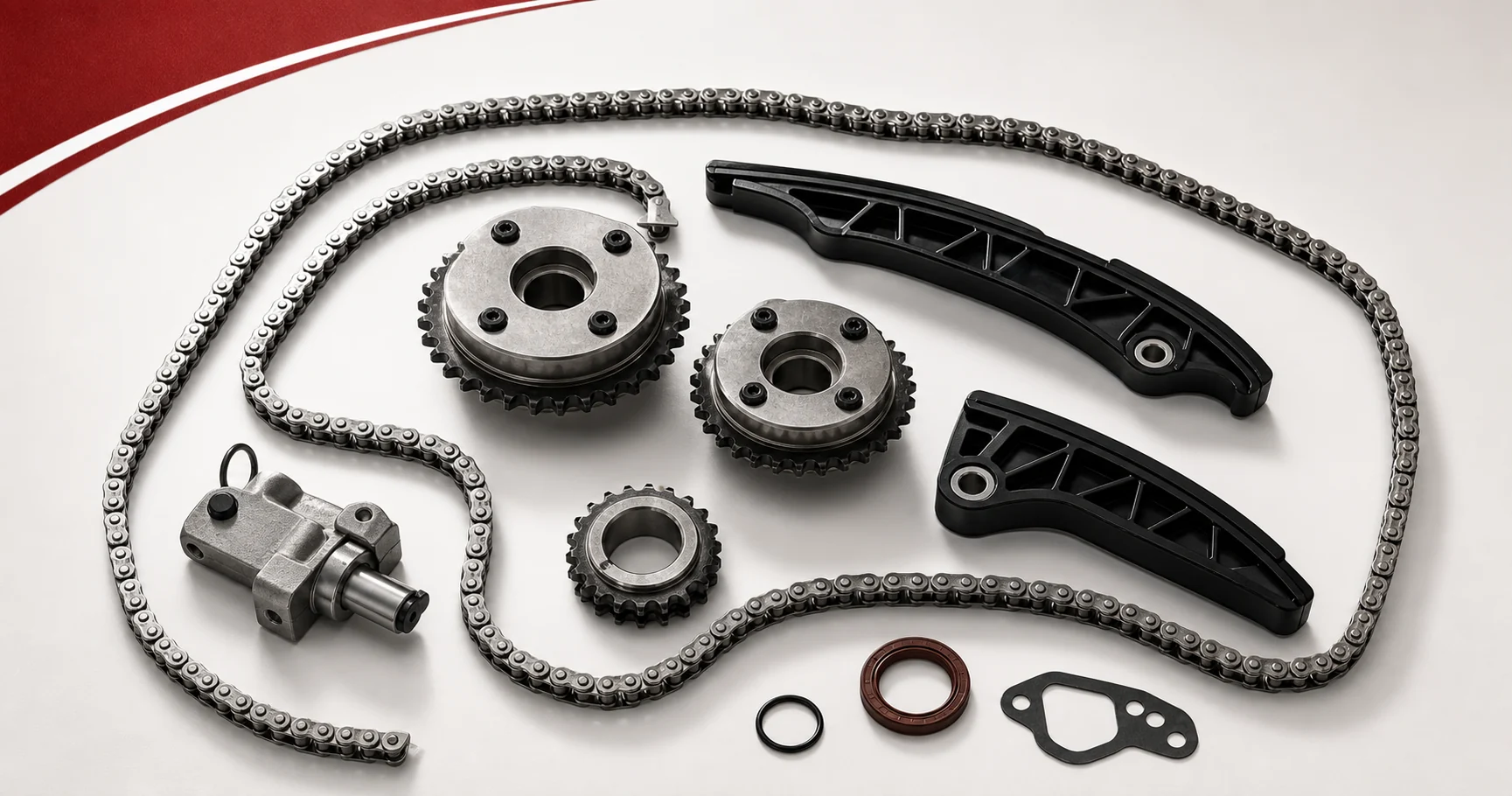

Generic kit presentationThe image shows a typical component group, not an exact Corolla kit or OE fitment claim.
Commercial kit scope
Define what “complete kit” means before price comparison
There is no single universal Corolla timing-chain kit. Suppliers may use the same sales term for different component counts, so every quotation should state the included lines.
Tensioner assembly
Hydraulic or mechanical tensioner details, mounting and revision must match the intended timing system.
Guide rails and dampers
State every required fixed guide, tensioner slipper and vibration damper rather than assuming they are all included.
Crank and cam sprockets
Standard sprockets and VVT cam gears are not automatically part of a basic kit. List them separately when required.
Seals and gaskets
Front crank seal, timing-cover sealing material and related O-rings may be quoted as optional service items.
Separate oil-pump drive
Where an engine uses an additional oil-pump chain, confirm whether it belongs in the requested repair scope.
Public identification evidence
Component references are evidence—not a universal kit number
The examples below come from public Toyota catalog data and identify individual Corolla-family timing components. They do not prove that the two parts belong to one kit or fit every vehicle using the same engine family.
| Public reference | Catalog description | Published application scope | How to use it in an RFQ |
|---|---|---|---|
| 13506-37070 | Chain sub-assembly | Public catalog data includes selected Corolla / Corolla Altis ZRE142 2ZR-FE applications. | Use as an identification lead; confirm model code, production date, market and supersession. |
| 13559-37010 | Chain tensioner slipper / guide | Public catalog data includes selected South Africa-market Corolla ZRE151 1ZR-FE applications. | Do not treat it as proof for another market or as a complete kit reference. |
Toyota names and references are used only for application identification. CorollaParts.com does not claim Toyota authorization or genuine-parts supply.
Fitment decision record
Six checks that prevent the wrong timing set
| Check | Required buyer evidence | Risk it controls |
|---|---|---|
| Engine identity | Complete engine code, not displacement alone | Separates different 1.6L, 1.8L, 2.0L and regional engine families |
| Vehicle identity | Chassis/model code, body style and destination market | Separates vehicles sharing the Corolla sales name |
| Production point | Production date or VIN/identification label where appropriate | Controls running changes and superseded components |
| Powertrain | Gasoline, diesel where applicable, or complete hybrid designation | Prevents a hybrid combustion engine from being grouped by displacement only |
| Drive type | Confirm timing chain or timing belt application | Prevents chain-kit requests for older belt-driven engines |
| Requested contents | Line-by-line list of chain, guides, tensioner, sprockets, VVT parts and seals | Makes supplier quotations commercially comparable |
Wrong-part risk
A timing kit should never be selected from “Corolla + year” alone
Corolla production spans many engines and markets. A matching chain length does not prove that guide geometry, tensioner travel, sprocket profile or VVT components are correct. A technically useful inquiry connects vehicle evidence to every requested component.
For an old-part sample, photograph the chain markings, every guide profile, tensioner mounting face, sprocket teeth and any stamped or molded reference. Add measurements only as supporting evidence; do not replace the engine and OE record with dimensions.
Wholesale supply
Quote the product and the order basis together
The quotation should identify available replacement grade, included components, quantity basis and packing. Website content is not an availability or fitment guarantee.
Complete or component lines
Request one defined kit or separate chains, tensioners, guides, sprockets and seals.
Mixed engine lists
Use one spreadsheet line per engine application and keep quantities separate.
Inspection evidence
Agree on dimensions, markings, kit contents and sample criteria before bulk confirmation.
Export packing
Discuss neutral or buyer-label packing and protected cartons after product scope is confirmed.
Parent and related pages
Continue through the Corolla engine-parts structure
All Corolla Engine Parts
Return to the 117-item engine-system directory.
Open engine directory →Corolla Oxygen Sensors
Confirm engine, emissions specification, exhaust position and connector.
View sensor checks →Corolla Generation Guide
Start with generation, chassis/model code, production date and market.
Open generation guide →Buyer FAQ
Corolla timing chain kit questions
Does one timing chain kit fit every Toyota Corolla?
No. Corolla timing systems vary by engine code, production date, market and powertrain. Even two 1.8-liter applications can require different chains, guides, tensioners or sprockets.
What is normally included in a timing chain kit?
A commercial kit may include the main timing chain, tensioner and guide rails. Sprockets, VVT gears, crank seals, timing-cover seals or an oil-pump chain may be included or quoted separately, so the required contents must be listed.
Can I request a quote using only the model year?
A year can start the review but is not enough for final selection. Send the complete engine code, chassis or model code, production date, destination market and any OE numbers or old-part photos.
Are the reference numbers on this page a complete kit number?
No. They are public Toyota component examples that demonstrate why each kit line must be checked individually. They are not a universal kit number or a fitment guarantee.
Do older Corolla engines always use a timing chain?
No. Some older Corolla applications use a timing belt. Confirm the engine and whether the repair requires a chain system or belt system before requesting a kit.
Can timing components be supplied as separate lines?
Yes. Buyers can request a complete commercial kit or list the chain, guides, tensioner, sprockets, VVT components and seals separately. Availability and packing are confirmed in the quotation.
Corolla parts RFQ
Send the part evidence.
Include the generation or year, engine or hybrid version, OE/reference numbers, quantities, destination and packing request. Attach a spreadsheet or old-part photos when useful.
