Application boundary
Tank design, engine or hybrid branch, market emissions system and sender arrangement must be resolved before a proposed part is treated as relevant.
Corolla electrical & sensors · procurement guide
Toyota Corolla Fuel Pump Modules
Record the tank, flange, outlet and level-sender arrangement before comparing a fuel-pump module.
tank designInstalled positionPhysical interfaceQuantity & packing

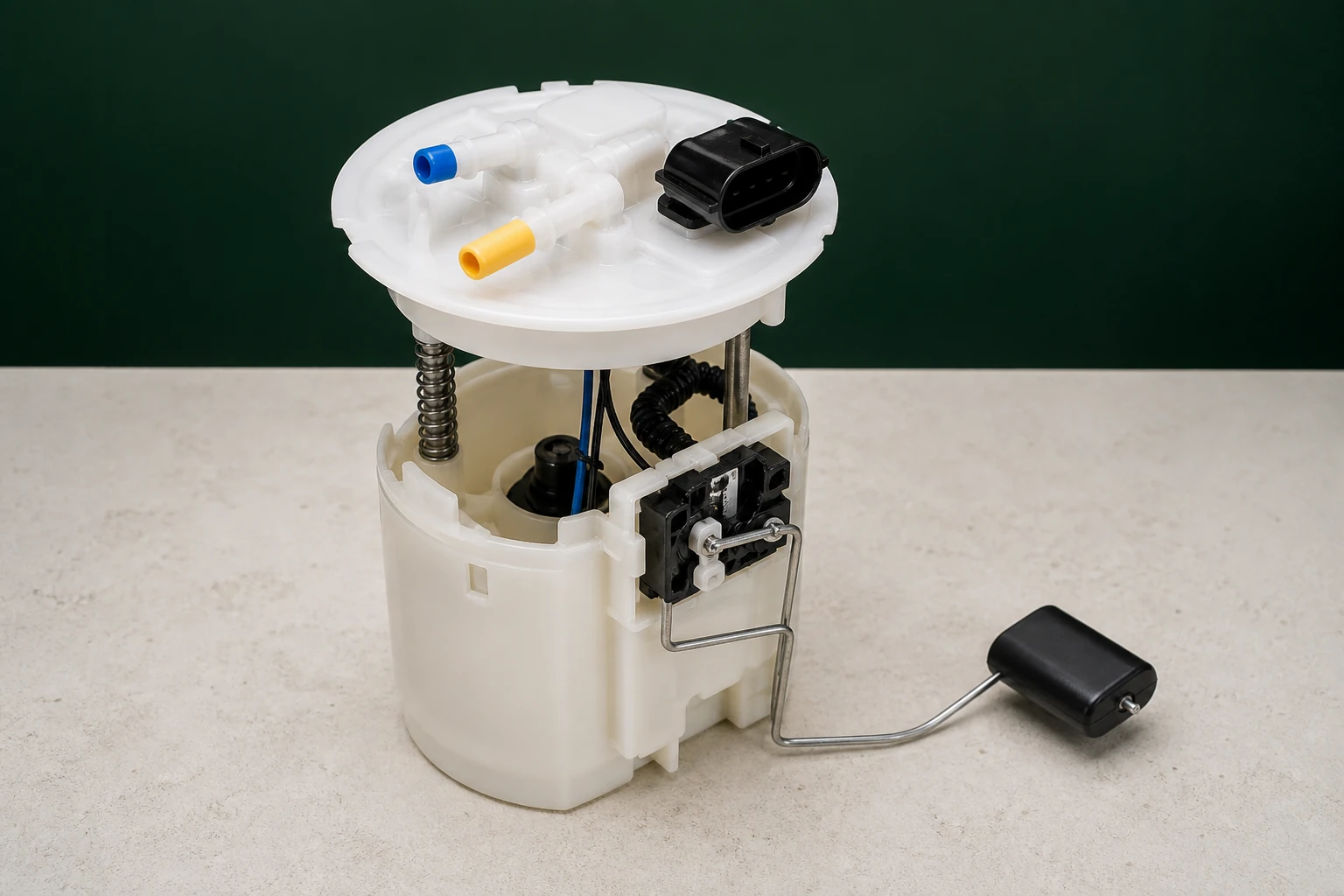

Identification image onlyPhysical part-family presentation; not exact Toyota, Corolla or OE fitment proof.
Quote definition
Define the fuel pump modules before comparing supply options
No universal OE number can safely cover this component family. A useful request combines vehicle, part, commercial and packing evidence that can be checked in writing.
Interface evidence
Record module height, flange diameter, outlet/return ports, connector, float arm and lock-ring design; connector or mounting similarity alone is not enough.
Assembly scope
Write the request as complete in-tank module, pump-only line, strainer, sender, seal or lock ring, with included hardware and seals stated separately.
Transit control
Cap fuel ports, secure float arms, isolate electrical pins and bag seals away from metal lock rings.
OE evidence gate
VIN and installed-part evidence required
Corolla applications for fuel pump modules divide by tank design, engine or hybrid branch, market emissions system and sender arrangement. No single OE number is published without a reconciled vehicle and installed-part record.
Evidence statusResearch required before quotation
What to submit
VIN or chassis/model code, production month, complete powertrain or equipment branch, old-part number and all relevant views.
What is not claimed
No current supersession, universal fitment, genuine/OEM supply, inventory, price or lead time is implied.
Decision record
Six checks for a quote-ready fuel pump modules line
| Decision point | Evidence to send |
|---|---|
| Vehicle branch | Record the Corolla generation, chassis/model code, production month, body style and destination market before comparing fuel pump modules. |
| System application | Confirm tank design, engine or hybrid branch, market emissions system and sender arrangement; a sales name or nominal model year does not resolve this branch. |
| Physical interface | Compare module height, flange diameter, outlet/return ports, connector, float arm and lock-ring design, using clear installed and removed-part photos wherever possible. |
| Requested assembly | State whether the line covers complete in-tank module, pump-only line, strainer, sender, seal or lock ring; reconcile every supplier photo with a written contents list. |
| Commercial basis | Give quantity per SKU, trial or repeat demand, destination port, preferred Incoterm and any inspection-document requirement. |
| Packing control | Cap fuel ports, secure float arms, isolate electrical pins and bag seals away from metal lock rings. |
Part-specific risk
Pump pressure and sender calibration are not visible from the flange alone
For Corolla fuel pump modules, the controlling difference can be module height, flange diameter, outlet/return ports, connector, float arm and lock-ring design. Keep every proposed part tied to the vehicle record and installed component; a broad year-range cross reference is not approval evidence.
Parent and sibling routes
Continue through Corolla electrical & sensors
All Electrical & Sensors
Return to the complete system directory and identification guidance.
Open directory →Corolla Generation Guide
Resolve generation, body, powertrain, production and market evidence before part matching.
Check the vehicle →Alternators
Review engine, hybrid/non-hybrid architecture, output and accessory layout and the required physical evidence.
View guide →Starter Motors
Review engine, transmission or hybrid branch and start-system design and the required physical evidence.
View guide →Buyer FAQ
Corolla fuel pump modules questions
Which vehicle details separate Corolla fuel pump modules applications?
Start with generation, chassis/model code and production month, then resolve tank design, engine or hybrid branch, market emissions system and sender arrangement. That branch is more useful than model year alone.
What physical evidence is useful for fuel pump modules?
Photograph the installed position, label and mounting or connector faces, then record module height, flange diameter, outlet/return ports, connector, float arm and lock-ring design. Keep every measurement tied to the same removed component.
How should the fuel pump modules assembly scope be written?
State complete in-tank module, pump-only line, strainer, sender, seal or lock ring. List seals, brackets, motors, modules, hardware or paired sides separately so quotations can be compared on the same contents.
What packing point matters for fuel pump modules?
Cap fuel ports, secure float arms, isolate electrical pins and bag seals away from metal lock rings.
Why is no OE number shown for this fuel pump modules page?
The research did not establish one safely scoped public reference for this broad component page. Send the old-part number, VIN or chassis/model code, production month and installed-part evidence instead.
Corolla parts RFQ
Send the part evidence.
Include the generation or year, engine or hybrid version, OE/reference numbers, quantities, destination and packing request. Attach a spreadsheet or old-part photos when useful.
