Application boundary
Engine code, sensor position, trigger system and production phase must be resolved before a proposed part is treated as relevant.
Corolla electrical & sensors · procurement guide
Toyota Corolla Crankshaft Position Sensors
Identify engine and pickup position, then compare insertion depth and connector keying.
engine codeInstalled positionPhysical interfaceQuantity & packing

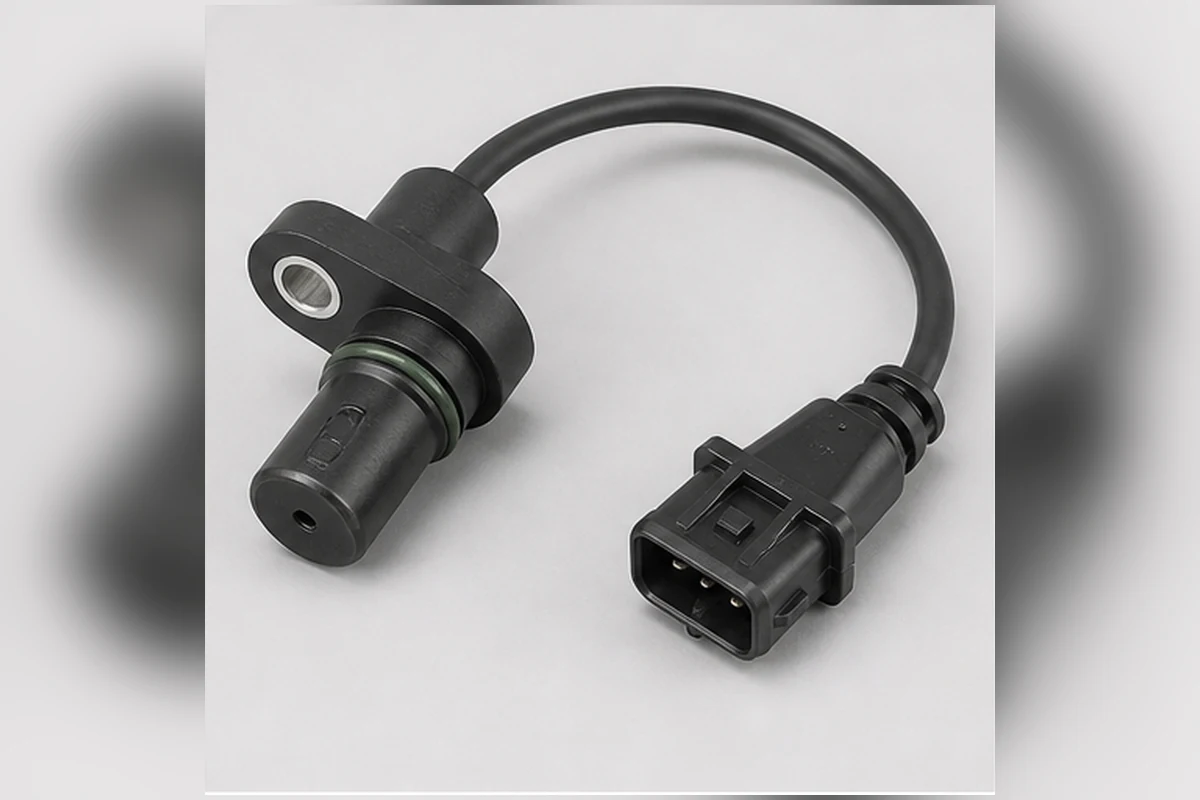

Identification image onlyPhysical part-family presentation; not exact Toyota, Corolla or OE fitment proof.
Quote definition
Define the crankshaft position sensors before comparing supply options
No universal OE number can safely cover this component family. A useful request combines vehicle, part, commercial and packing evidence that can be checked in writing.
Interface evidence
Record pickup length, mounting ear, O-ring, cable length and connector key; connector or mounting similarity alone is not enough.
Assembly scope
Write the request as sensor only, seal, clip, pigtail or harness-inclusive line, with included hardware and seals stated separately.
Transit control
Use antistatic bags, protect pickup faces and O-rings and avoid tight cable coils.
OE evidence gate
VIN and installed-part evidence required
No single safe Corolla OE reference was established across engine code, sensor position, trigger system and production phase; request VIN, production month and installed-part evidence.
Evidence statusResearch required before quotation
What to submit
VIN or chassis/model code, production month, complete powertrain or equipment branch, old-part number and all relevant views.
What is not claimed
No current supersession, universal fitment, genuine/OEM supply, inventory, price or lead time is implied.
Decision record
Six checks for a quote-ready crankshaft position sensors line
| Decision point | Evidence to send |
|---|---|
| Vehicle branch | Record the Corolla generation, chassis/model code, production month, body style and destination market before comparing crankshaft position sensors. |
| System application | Confirm engine code, sensor position, trigger system and production phase; a sales name or nominal model year does not resolve this branch. |
| Physical interface | Compare pickup length, mounting ear, O-ring, cable length and connector key, using clear installed and removed-part photos wherever possible. |
| Requested assembly | State whether the line covers sensor only, seal, clip, pigtail or harness-inclusive line; reconcile every supplier photo with a written contents list. |
| Commercial basis | Give quantity per SKU, trial or repeat demand, destination port, preferred Incoterm and any inspection-document requirement. |
| Packing control | Use antistatic bags, protect pickup faces and O-rings and avoid tight cable coils. |
Part-specific risk
Connector shape does not prove pickup length or trigger compatibility
For Corolla crankshaft position sensors, the controlling difference can be pickup length, mounting ear, O-ring, cable length and connector key. Keep every proposed part tied to the vehicle record and installed component; a broad year-range cross reference is not approval evidence.
Parent and sibling routes
Continue through Corolla electrical & sensors
All Electrical & Sensors
Return to the complete system directory and identification guidance.
Open directory →Corolla Generation Guide
Resolve generation, body, powertrain, production and market evidence before part matching.
Check the vehicle →Camshaft Position Sensors
Review engine code, intake/exhaust position, bank and production phase and the required physical evidence.
View guide →Engine Coolant Temperature Sensors
Review engine code, sensor location, coolant housing and control-system generation and the required physical evidence.
View guide →Buyer FAQ
Corolla crankshaft position sensors questions
Which vehicle details separate Corolla crankshaft position sensors applications?
Start with generation, chassis/model code and production month, then resolve engine code, sensor position, trigger system and production phase. That branch is more useful than model year alone.
What physical evidence is useful for crankshaft position sensors?
Photograph the installed position, label and mounting or connector faces, then record pickup length, mounting ear, O-ring, cable length and connector key. Keep every measurement tied to the same removed component.
How should the crankshaft position sensors assembly scope be written?
State sensor only, seal, clip, pigtail or harness-inclusive line. List seals, brackets, motors, modules, hardware or paired sides separately so quotations can be compared on the same contents.
What packing point matters for crankshaft position sensors?
Use antistatic bags, protect pickup faces and O-rings and avoid tight cable coils.
Why is no OE number shown for this crankshaft position sensors page?
The research did not establish one safely scoped public reference for this broad component page. Send the old-part number, VIN or chassis/model code, production month and installed-part evidence instead.
Maintenance knowledge
Related Corolla inspection guides
Use symptoms and physical checks to define the repair need before selecting a replacement part.
Symptoms & Diagnosis
Toyota Corolla Ignition Coil Failure Symptoms
Save diagnostic data, inspect the plug and coil well, compare the suspect cylinder using approved tests, and match any coil by engine, connector and physical profile.
Read practical guide
Symptoms & Diagnosis
Toyota Corolla Crankshaft Position Sensor Symptoms
Save codes and engine-speed data, inspect wiring at the sensor, and verify signal and mechanical conditions with the proper equipment.
Read practical guide
Symptoms & Diagnosis
Toyota Corolla Camshaft Position Sensor Symptoms
Identify intake/exhaust and bank position where applicable, retain scan data, inspect wiring and oil contamination, then verify the timing relationship before replacing a sensor.
Read practical guideCorolla parts RFQ
Send the part evidence.
Include the generation or year, engine or hybrid version, OE/reference numbers, quantities, destination and packing request. Attach a spreadsheet or old-part photos when useful.
