Application boundary
Generation, HVAC case, engine coolant layout, market and pipe orientation must be resolved before a proposed part is treated as relevant.
Corolla air conditioning · procurement guide
Toyota Corolla Heater Cores
Match the HVAC case, core dimensions and pipe route before comparing a compact heater core.
generationInstalled positionPhysical interfaceQuantity & packing

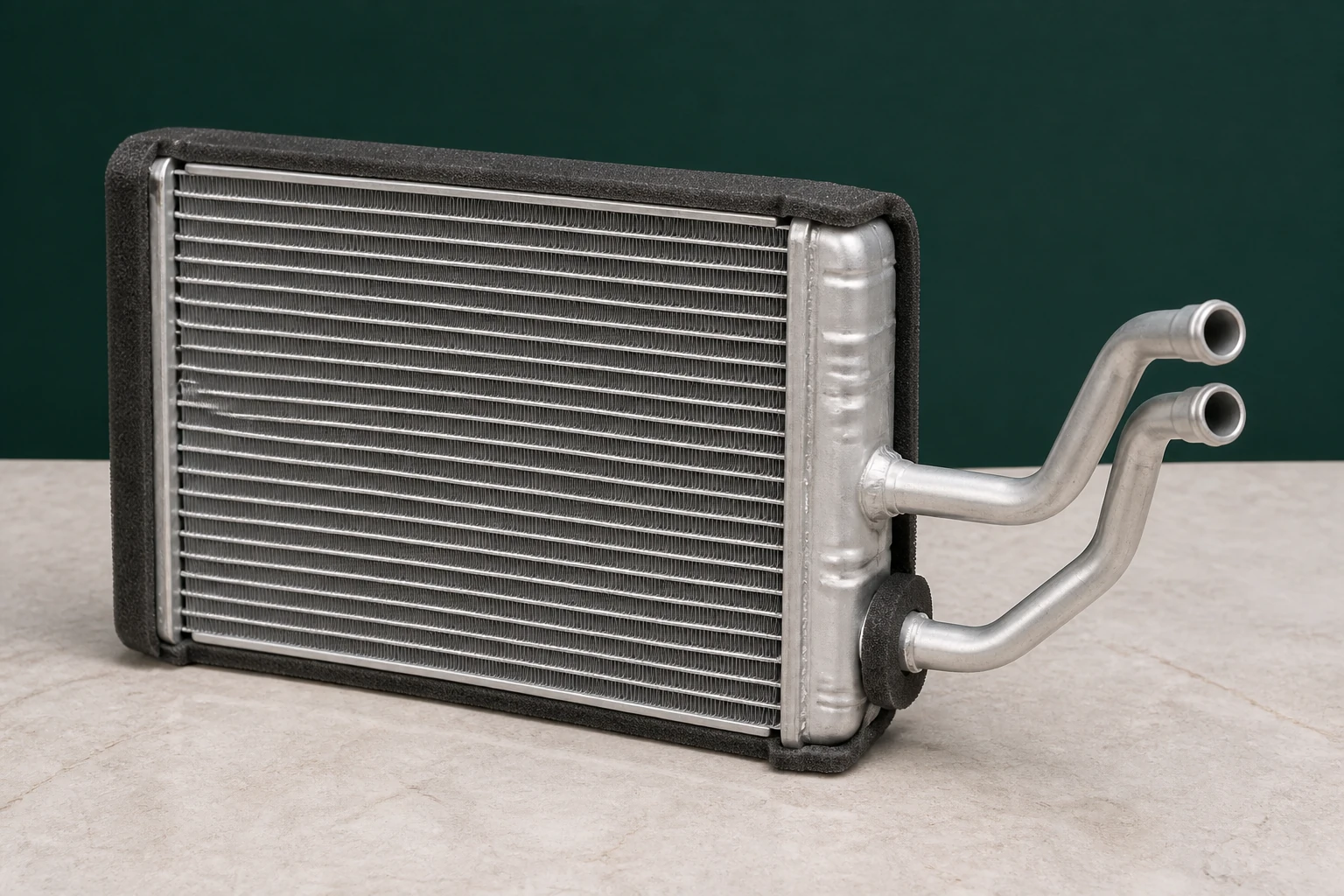

Identification image onlyPhysical part-family presentation; not exact Toyota, Corolla or OE fitment proof.
Quote definition
Define the heater cores before comparing supply options
No universal OE number can safely cover this component family. A useful request combines vehicle, part, commercial and packing evidence that can be checked in writing.
Interface evidence
Record core width and height, thickness, tube positions, pipe bend, flange and foam seals; connector or mounting similarity alone is not enough.
Assembly scope
Write the request as core only, attached pipes, seals, clamps or HVAC-case service package, with included hardware and seals stated separately.
Transit control
Use rigid fin guards, cap pipes, protect bends and keep foam seals dry and uncompressed.
OE evidence gate
VIN and installed-part evidence required
Corolla applications for heater cores divide by generation, HVAC case, engine coolant layout, market and pipe orientation. No single OE number is published without a reconciled vehicle and installed-part record.
Evidence statusResearch required before quotation
What to submit
VIN or chassis/model code, production month, complete powertrain or equipment branch, old-part number and all relevant views.
What is not claimed
No current supersession, universal fitment, genuine/OEM supply, inventory, price or lead time is implied.
Decision record
Six checks for a quote-ready heater cores line
| Decision point | Evidence to send |
|---|---|
| Vehicle branch | Record the Corolla generation, chassis/model code, production month, body style and destination market before comparing heater cores. |
| System application | Confirm generation, HVAC case, engine coolant layout, market and pipe orientation; a sales name or nominal model year does not resolve this branch. |
| Physical interface | Compare core width and height, thickness, tube positions, pipe bend, flange and foam seals, using clear installed and removed-part photos wherever possible. |
| Requested assembly | State whether the line covers core only, attached pipes, seals, clamps or HVAC-case service package; reconcile every supplier photo with a written contents list. |
| Commercial basis | Give quantity per SKU, trial or repeat demand, destination port, preferred Incoterm and any inspection-document requirement. |
| Packing control | Use rigid fin guards, cap pipes, protect bends and keep foam seals dry and uncompressed. |
Part-specific risk
Small changes in pipe angle can prevent the core from entering the HVAC case
For Corolla heater cores, the controlling difference can be core width and height, thickness, tube positions, pipe bend, flange and foam seals. Keep every proposed part tied to the vehicle record and installed component; a broad year-range cross reference is not approval evidence.
Parent and sibling routes
Continue through Corolla air conditioning
All Air Conditioning
Return to the complete system directory and identification guidance.
Open directory →Corolla Generation Guide
Resolve generation, body, powertrain, production and market evidence before part matching.
Check the vehicle →A/C Compressors
Review engine/hybrid architecture, refrigerant and compressor drive and the required physical evidence.
View guide →A/C Condensers
Review generation, refrigerant circuit and receiver-drier layout and the required physical evidence.
View guide →Buyer FAQ
Corolla heater cores questions
Which vehicle details separate Corolla heater cores applications?
Start with generation, chassis/model code and production month, then resolve generation, HVAC case, engine coolant layout, market and pipe orientation. That branch is more useful than model year alone.
What physical evidence is useful for heater cores?
Photograph the installed position, label and mounting or connector faces, then record core width and height, thickness, tube positions, pipe bend, flange and foam seals. Keep every measurement tied to the same removed component.
How should the heater cores assembly scope be written?
State core only, attached pipes, seals, clamps or HVAC-case service package. List seals, brackets, motors, modules, hardware or paired sides separately so quotations can be compared on the same contents.
What packing point matters for heater cores?
Use rigid fin guards, cap pipes, protect bends and keep foam seals dry and uncompressed.
Why is no OE number shown for this heater cores page?
The research did not establish one safely scoped public reference for this broad component page. Send the old-part number, VIN or chassis/model code, production month and installed-part evidence instead.
Corolla parts RFQ
Send the part evidence.
Include the generation or year, engine or hybrid version, OE/reference numbers, quantities, destination and packing request. Attach a spreadsheet or old-part photos when useful.
